SWG 100 CEM
SWG 100 CEM

SWG 100 CEM

Regular price$13,651.00
/

OPERATIONS MANUAL *

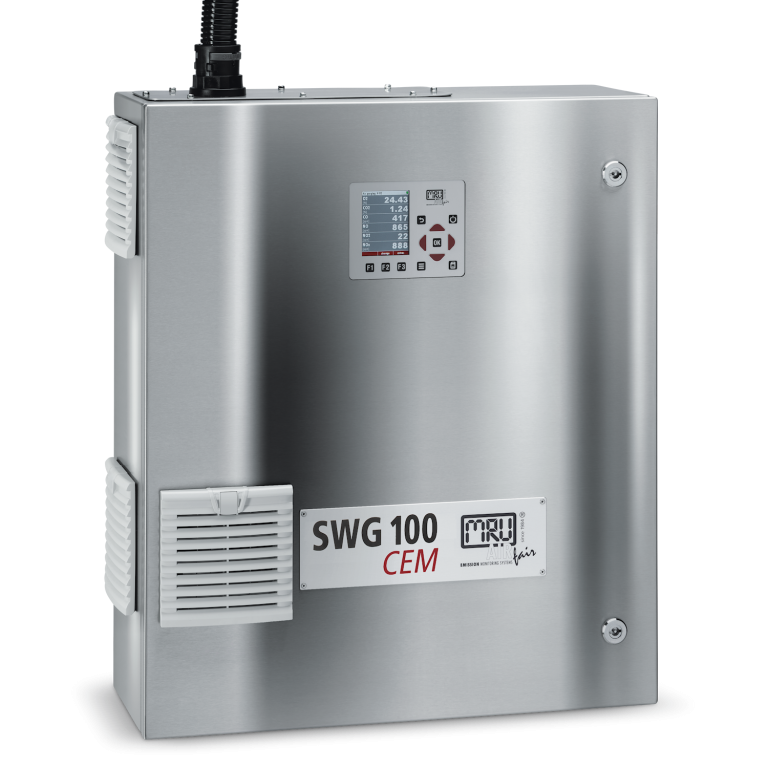

The SWG 100 CEM is a stationary analyzer meant for continuous emission monitoring. It works best for industrial applications using the extractive method.

Basic Equipment
  • Field replaceable plug play pre-calibrated sensors
  • Compact industrial design for up to 6 gas simultaneous measurements
  • Uses low cost, reliable electrochemical cells for O2, CO, NO, NO2, SO2  and an infrared module (NDIR) for CO2 measurement

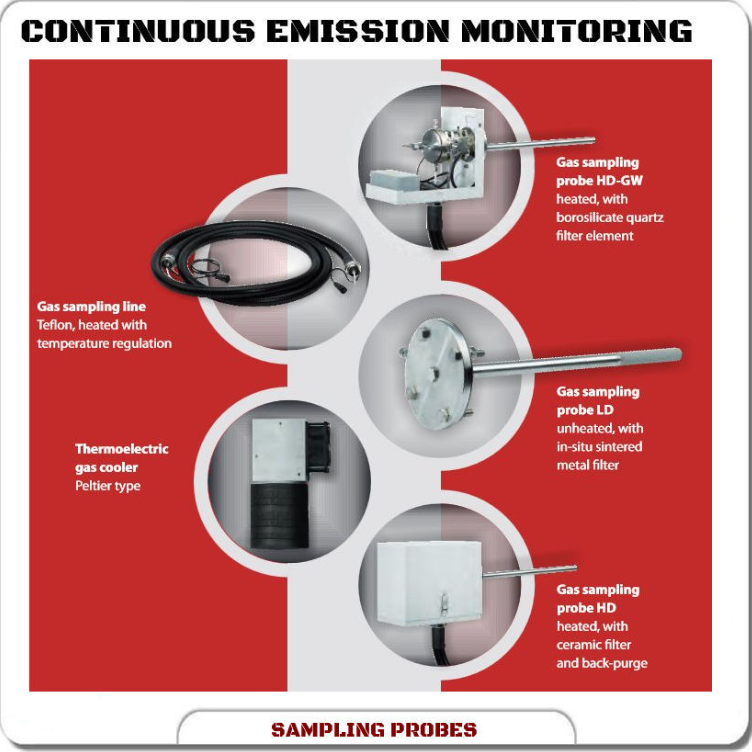

  • Advanced sample gas preparation for fast and reliable measurements
  • Flexible platform can be used for various combustion applications
  • Direct and continuous/discontinuous measurement, with pressure and temperature compensation of all main flue gas parameters
  • External measurements (temperature, pressure, etc.) by reading of ext. standard signal
  • Simple installation, ready to run delivery and easy to maintain
Technical Data
Measuring ranges
O2 – Oxygen 0 … 25 %
CO2 – Carbon dioxide 0 … 40 %
CO – Carbon monoxide 0 … 10,000 ppm
NO – Nitric oxide 0 … 4,000 ppm
NO2 – Nitrogen dioxid 0 … 1,000ppm
SO2 – Sulfur dioxide 0 … 4,000ppm
Dimensions and other data
Display 3.5” TFT color and backlit display
Weight / Protection class 55lbs (25kg) / IP54
Dimensions 27.55″ x 23.61″ x 8.26″ (H x W x D) for wall or rack mounting
